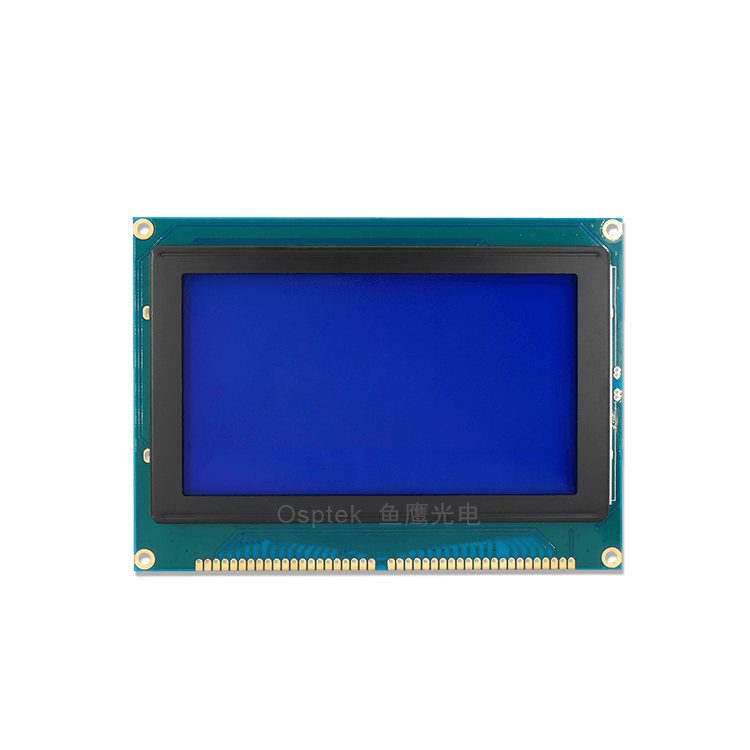

240x128 COB Module | STN- Blue Display with White Side Backlight
> Model:
LCM240128B-1-B
> Size:
4.82''Diagonal | 240x128 Pixels
> Display Type:
COB Modules
> Interface:
MCU
> Backlight Color:
White
> Driver IC:
RA6963+SDN8080G
> Resources:Specifications
Click the underlined blue font to download the documents！
Description
Quality Standards
Our Distributors

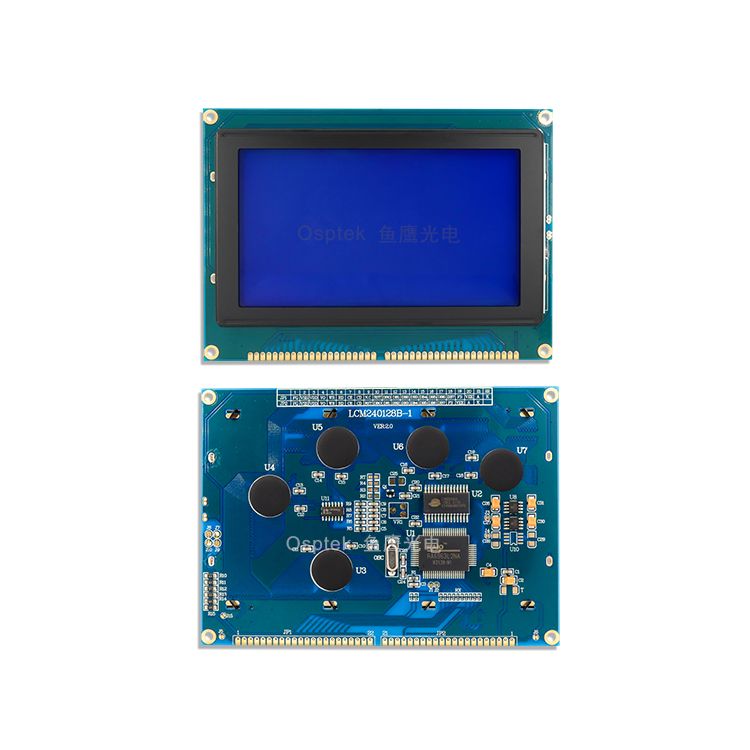

LCM240128B-1-B | 240x128 COG Module | Transmissive | Side White Backlight | STN (-) Negative Blue Display
The 240x128 COG Module shows characters with white pixels on a blue background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This LCM240128B-1-B module has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.
Product Specifications
Model
LCM240128B-1-B
Size
4.82''Diagonal | 240x128 Pixels
Backlight Color
White
Interface
MCU
Driver IC
RA6963+SDN8080G
Display Type
STN (-) Blue
Display Mode
Transmissive
Outline L x W x H
144.0mm x 104.0mm x 12.0mm
Viewing Area L x W
114.0mm x 64.0mm
Active Area L x W
107.95mm x 57.55mm
VDD&VOP
5.0 & 18V
Connection Type
1x21,1x22 Thru Hole with 2.54mm pitch
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
