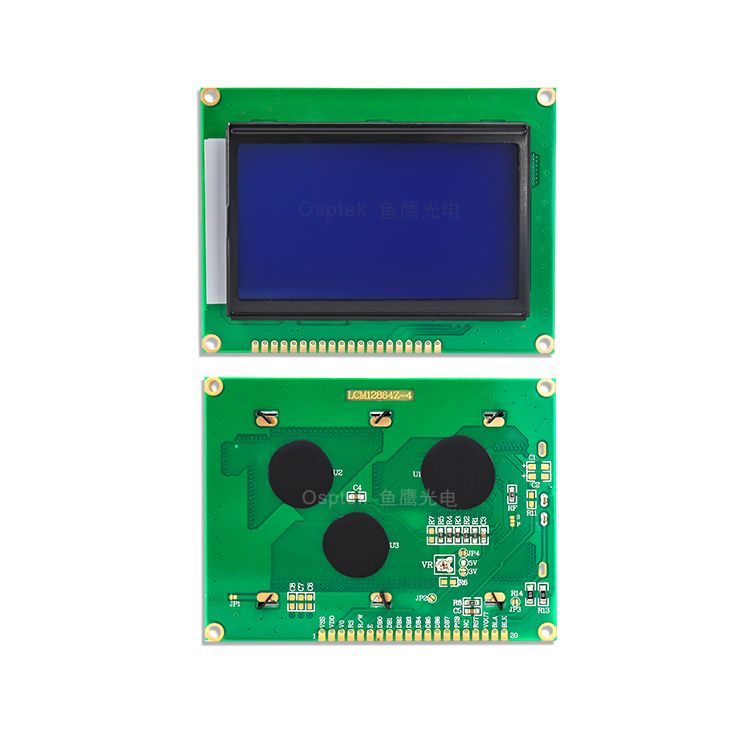

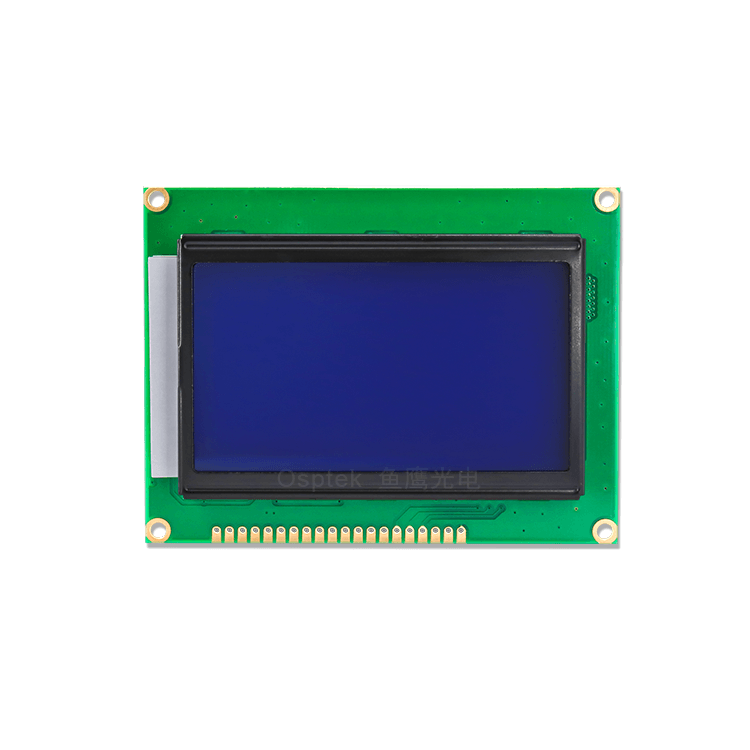

128x64 COB Module | STN- Blue Display with White Side Backlight
> Model:
LCM12864Z-4-B
> Size:
2.93''Diagonal | 128x64 Pixels
> Display Type:
COB Modules
> Interface:
MCU
> Backlight Color:
White
> Driver IC:
AIP31020
> Resources:Specifications
Click the underlined blue font to download the documents！
Description
Quality Standards
Our Distributors
LCM12864Z-4-B | 128x64 COG Module | Transmissive | Side White Backlight | STN (-) Negative Blue Display
The 20x4 character Liquid Crystal Display shows characters with white pixels on a blue background when powered on. This transmissive LCD Display requires a backlight for visibility while offering a wide operating temperature range from -20 to 70 degrees Celsius. This LCM2004A-8-B display has an optimal view of 6:00. This display operates at 5V supply voltage and is RoHS compliant.
Product Specifications
Model
LCM12864Z-4-B
Size
2.93''Diagonal | 128x64 Pixels
Backlight Color
White
Interface
MCU
Driver IC
AIP31020
Display Type
STN (-) Blue
Display Mode
Transmissive
Outline L x W x H
93.0mm x 70.0mm x 12.5mm
Viewing Area L x W
72.0mm x 39.0mm
Active Area L x W
66.52mm x 33.24mm
VDD&VOP
5.0 & 5.0V
Connection Type
1x20 Thru Hole with 2.54mm pitch
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
