1.78 Inch AMOLED Touchscreen
> Model:
AM178E585-B
> Size:
1.78''Diagonal | 368x3x448 Pixels
> Display Color:
Full Color
> Display Type:
AMOLED
> Driver IC:
> Resources:Specifications
Click the underlined blue font to download the documents！
Description
Quality Standards
Our Distributors

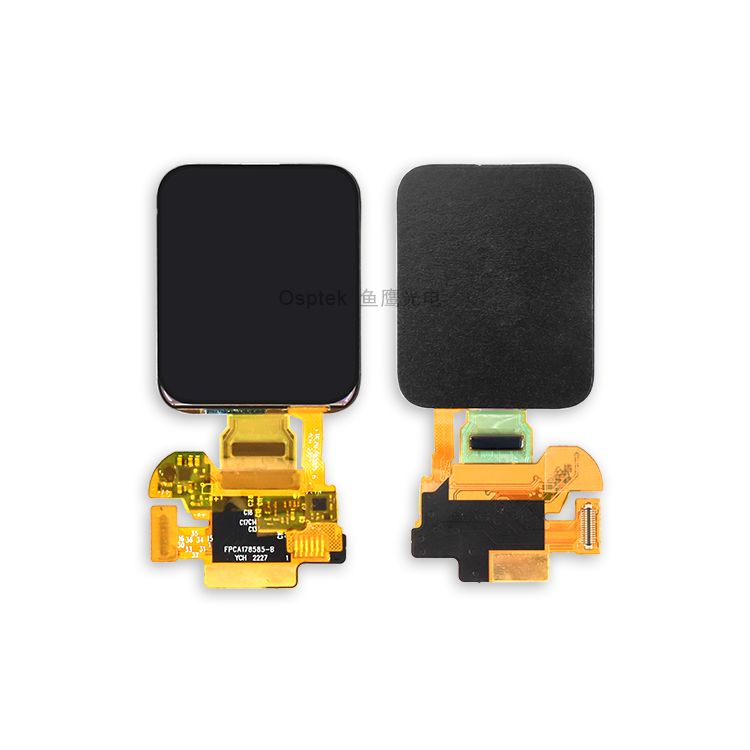

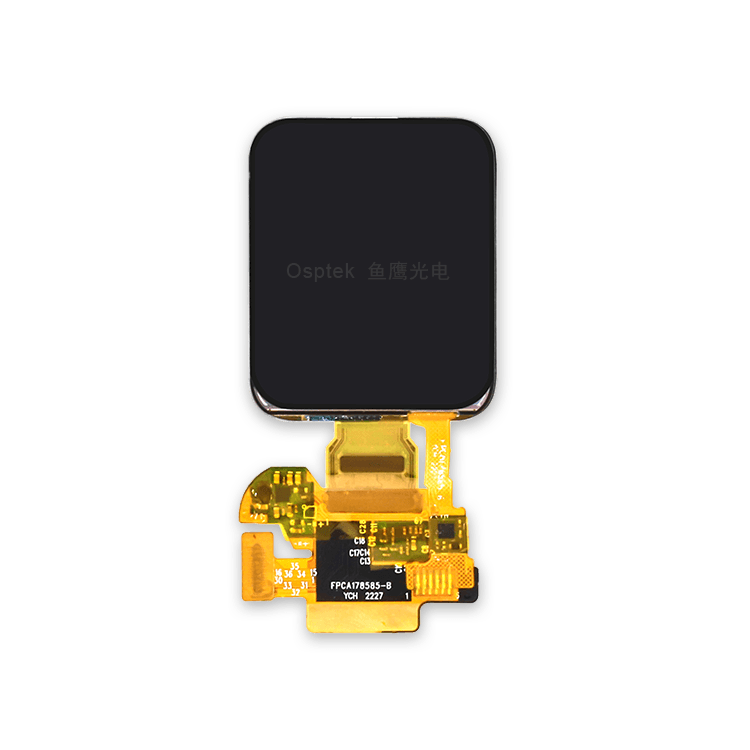

AM178E585-B | 368xRGBx448 Pixels | Optically Bonded Capacitive Touchscreen | Full Color | Serial,MIPI Interface
This 1.78 inch 368xRGBx448 resolution AMOLED presents full color graphics on a rich black background.with high speed response times along with high contrast visibility from any angle.This transmissive 8-bit RGB display has an optically bonded capacitive touchscreen with Serial,MIPI interface and black extended cover glass. The display has a built-in SH8601A controller , operates at 2.8V supply voltage and is RoHS compliant.
Product Specifications
Model
AM178E585-B
Size
1.78''Diagonal | 368x3x448 Pixels
Interface
MIPI,SPI
Driver IC
SH8601A0 ,TP IC: CHSC5816
Display Color
Full Color
Display Type
Graphic AMOLED screen
Outline L x W x H
30.6mm x 37.99mm x 0.78mm
Active Area L x W
28.7mm x 34.94mm
Dot Pitch L x W
0.078mm x 0.078mm
Supply Voltage
2.8V
Connection Type
36 pin FPC
Operating Temperature
-20°C ~ 70°C
Storage Temperature
-30°C ~ 80°C
